Multichem Dock (Heavy duty)

Multi Dock Chem composite hoses for chemical transfer are specialized hoses designed to handle the transfer of a wide range of chemicals, solvents, alkaline and fatty acids safely and efficiently. These composite hoses are extremely flexible and lightweight designed for handling fuel, lubricant and 100% aromatics at required discharge pressure or suction at port installation. These hoses are constructed using advanced composite materials to ensure high chemical resistance and durability.

Compliance : Multi Dock chem hoses are manufactured in accordance to EN 13765 / 2018 Type 3

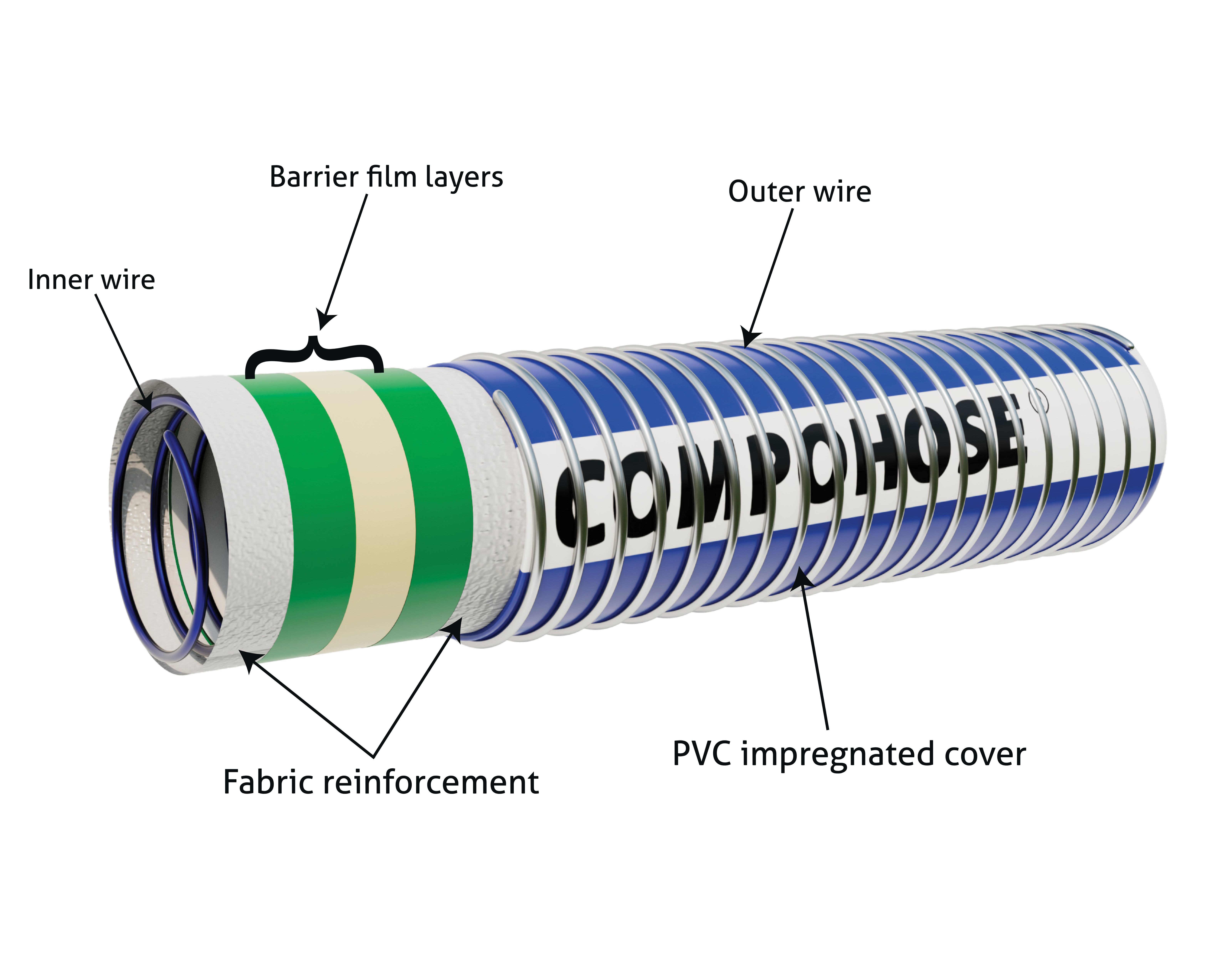

Construction

Hose Type - PPG, SPG, PPS, SPS, PSPS
Inner wire - Polypropylene Coated Galvanised Steel/ Stainless Steel 304, 316.
Inner Lining -Multiple layers of polypropylene fabric, films and polyester barrier layers
Outer wire -Galvanised Steel/Stainless Steel 304, 316
Cover - Abrasion-resistant PVC impregnated fabric
End fitting -As per client requirements, externally crimped and swaged

Features

Tough PVC outer cover resists dragging, wearing, abrasion, UV and ozone resistance ensures maximum durability and safety.
Light Weight & Highly Flexible
Superior Electrical Continuity
Suitable for 0.9 Bar Vacuum rating.
Working Pressure: 14 Bar (200 PSI)
Safety factor 4:1 as per EN 13765 / 2018 (can be achieved higher if required)
Temperature Range for this hose is -30° C to +100° C (-22° F to +212° F)

Applications

Loading and Unloading Barges: Compohose is ideal for loading and unloading operations on barges. Its high tensile polypropylene coated galvanized steel inner wire and outer wire provide strength and flexibility, making it suitable for handling the stresses and strains of marine environments.

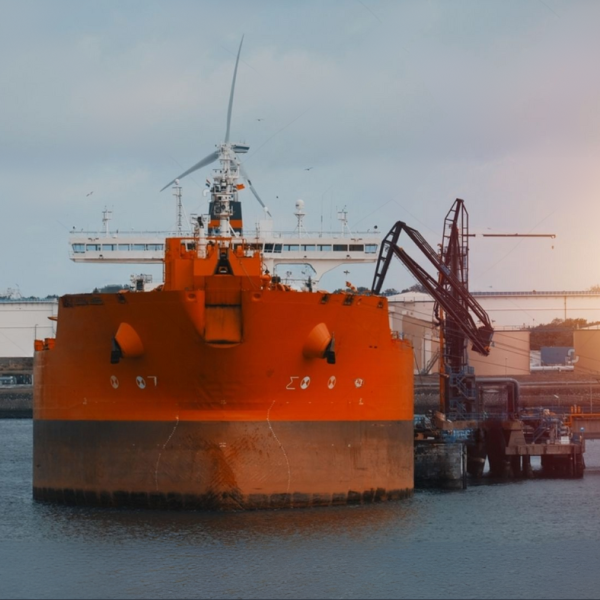

Ocean Tanker Operations: When transferring chemicals to or from ocean tankers, Compohose ensures the safe and efficient transfer of fluids. Its construction ensures integrity even during the dynamic movements of tankers at sea.

Bunkering Services: Compohose is well-suited for bunkering services, where fuels or other chemicals are transferred from storage tanks to ships. Its strength and flexibility are essential for handling large volumes of liquids efficiently.

Dockside Operations at Ports: Compohose finds use in various dockside operations at ports, where chemicals and fluids need to be transferred between storage tanks and vessels. Its robust design ensures durability in these demanding environments.

Chemical Industry: The heavy-duty nature of Compohose makes it an excellent choice for chemical manufacturers and processors. It can be used for transferring a wide range of chemicals within a plant or between different facilities.

Marine and Shipping Industry: Beyond loading and unloading operations, Compohose can be used on ships for various fluid transfer needs, such as transferring cleaning agents, lubricants, or other chemicals.

Industrial Manufacturing: Compohose can be employed in industrial settings for transferring hazardous or corrosive chemicals within a manufacturing facility. Its robust construction ensures the safe handling of these materials.

Specification Table :

CODE	SIZE		MEAN OD	MAX W.P		MIN BURST		BEND RADIUS		WEIGHT (KG)	MAX LENGTH
NAME	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	INCH	GG & SG		MT	FT
C02PG25	25	1”	37	14	200	56	800	200	8	1.10		30	100
C02PG38	38	1.5”	51	14	200	56	800	200	8	1.43		30	100
C02PG50	50	2”	65	14	200	56	800	225	9	1.60		30	100
C02PG65	65	2.5”	77	14	200	56	800	225	9	2.10		30	100
C02PG75	75	3”	90	14	200	56	800	350	14	4.20		30	100
C02PG100	100	4”	121	14	200	56	800	400	16	7.20		30	100
C02PG150	150	6”	179	14	200	56	800	575	23	12.50		30	100
C02PG200	200	8”	233	14	200	56	800	800	32	17.00		30	100

*Higher burst pressure can be achieved on special request

Safety Standards

Rigorous Safety Testing

COMPOHOSE assemblies undergo comprehensive testing, conducted at 1.5 times the rated Working Pressure (W.P). This stringent testing adheres to the EN 13765 standard, ensuring a paramount level of safety and reliability.

Provision of Manufacturer's Test Certificate

With each supply of COMPOHOSE composite hose assemblies, a Manufacturer's Test Certificate is included. This certificate serves as a confirmation of the product's quality and compliance with safety standards, providing added assurance to users.

Clear Burst Pressure Specification

The burst pressure of the composite hose is explicitly indicated for ambient temperature conditions. This vital information enhances safety awareness and empowers users to operate within secure pressure limits.

Effective Electrical Continuity

The composite hose's electrical continuity is assured through the integration of two bonded wires connected to the end fitting. This innovative design promotes the dissipation of accumulated electrical charges, mitigating the risk of static flashes and associated hazards.
